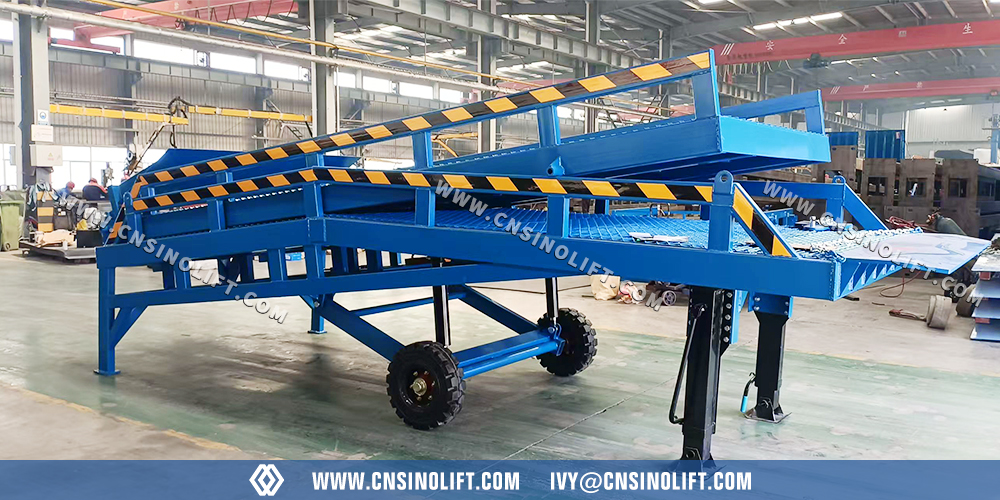

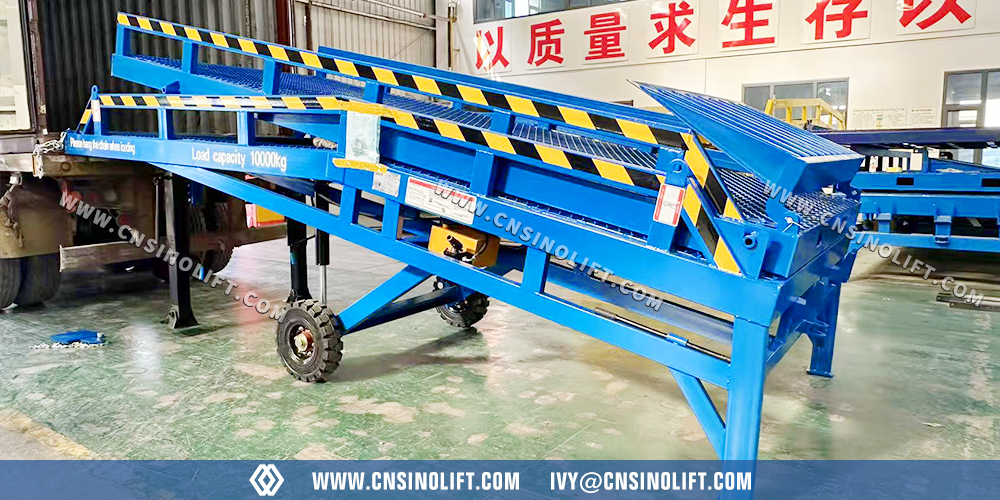

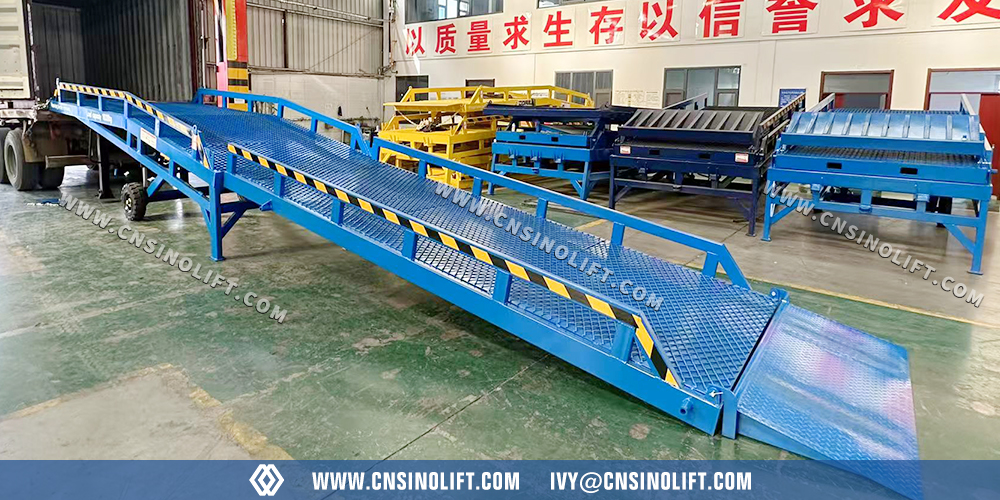

The folding mobile loading ramp is a split-type design engineered for efficient truck and container loading in logistics centers, factories, and warehouses. Unlike traditional one-piece ramps, it consists of modular sections that can be disassembled for easier relocation and maintenance.
When folded, each of the 2 sets measures approximately 5.75 m × 2.1 m × 2.06 m (L×W×H). A standard 20-foot shipping container can accommodate two complete folding ramps. Compared with a traditional non-folding mobile ramp, the folded design may take up slightly more space when measured as a whole, but its sectional structure removes the need for oversized transport equipment. The two sections can be handled separately and loaded using standard vehicles, making it easier and more cost-effective to move between sites. For storage, the separated units can be placed individually, helping businesses optimize warehouse space.
Our folding ramps are built for heavy-duty performance, with rated capacities ranging from 6 tons to 15 tons, meeting the demands of forklifts, pallet trucks, and other industrial vehicles. The frame uses high-strength steel, with varying-thickness plates—for example, 4 mm anti-slip deck plates, 8 mm grating on the upper section, reinforced guardrails, and robust tailgates. Adjustable support legs maintain stability on uneven ground, ensuring safe operations.
This ramp is ideal for loading and unloading in factories, warehouses, freight stations, ports, and large retail distribution centers. It creates a secure bridge between trucks or containers and the loading dock, allowing forklifts to move goods smoothly without manual lifting. For sites where permanent ramps are impractical—such as leased warehouses, temporary logistics hubs, or construction projects—the folding mobile ramp offers a cost-effective, movable alternative.
The modular design is easy to assemble on-site, even in confined spaces or older facilities with limited access. In case of damage, only the affected section needs replacement, reducing maintenance costs and downtime.
Heavy load capacity for demanding operations
Adaptable design for multiple work environments
Lower maintenance costs thanks to replaceable modules
Safe and stable with reinforced structure and adjustable supports
For businesses seeking a ramp that balances portability, durability, and high load performance, the folding mobile loading ramp delivers efficiency across transport, storage, and daily use. Custom sizes and capacities are available to match your specific operational needs.
Contact me to obtain the drawings.
If you are unable to make a better choice, feel free to contact us. HENAN SINO LIFT provides professional lifting solutions to help you work smarter and more efficiently!
