We've dispatched one 6 m self-propelled mast lift to Israel, finished in custom yellow. Built for tight indoor spaces, it combines a compact footprint with stable handling and multi-layer corrosion protection (electrophoresis + shot-blasting + powder coating) for long service life.
Safe Working Load (SWL): 159 kg
Extension Platform SWL: 114 kg
Minimum Turning Radius: inner 0 m / outer 1.4 m
Overall Dimensions: 1.36 m (L) × 0.82 m (W) × 1.98 m (H)
Standard Extension Deck Length: 0.51 m
Surface Treatment: Electrophoresis + shot-blasting + powder coating
Multi-sensor protection: height limit, overload, tilt, and voltage monitoring
Anti-pinch protection, charging protection, hose burst protection, automatic braking
Equipped with an Italian explosion-proof valve for added hydraulic safety
0.5 m quick-deploy extension deck improves reach and efficiency
Industry-leading maneuverability (0 m inner turning radius), smooth control in narrow aisles
25% gradeability; on-board fault code display simplifies maintenance

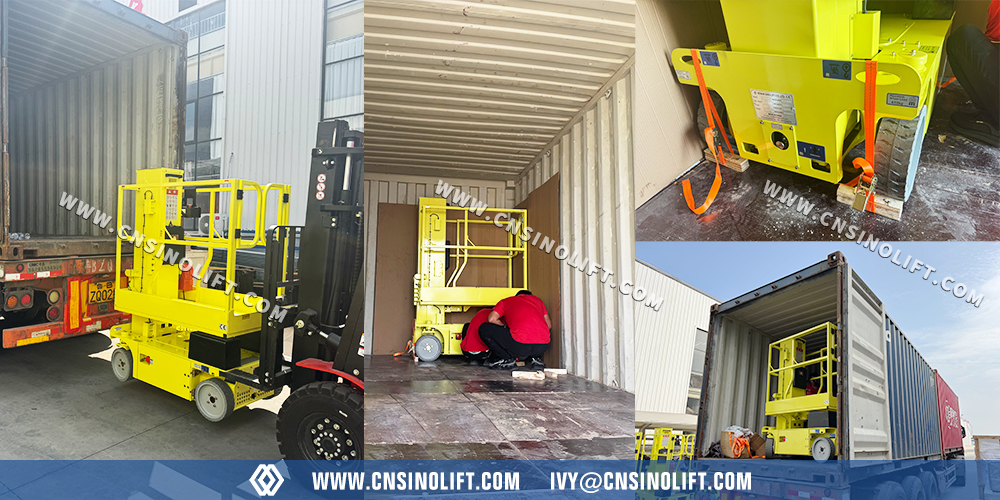

Packing: carton + wooden pallet + rope tie-downs; 11 units fit a 20-ft container
Stable, compact, and safety-focused—this model is engineered for reliable elevated work in warehouses, factories, and facility maintenance scenarios.
Looking for a compact lift solution for tight spaces? Contact us today to find the perfect model for your needs.
