Electric scissor lifts are widely used in facility maintenance, construction, warehousing, and installation work. Whether you are using a compact indoor electric lift platform or a more robust Self Propelled Electric Scissor Lift, understanding how operator weight, tools, and extension deck loading influence platform capacity is essential for safe operation.
A small, low-frequency sway is completely normal for any elevated lifting platform. But as total load approaches the rated limit—or weight shifts away from the platform center—wobble may become more noticeable. This guide explains how weight affects stability and how to choose the right scissor lift for safe, efficient work.
Operator body weight is the largest portion of total platform load. Depending on how heavy each operator is, a scissor lift may safely carry:
Three lighter operators, or
Only one or two heavier operators, especially when tools are added
Heavier operators raise the center of gravity, making normal sway more noticeable. Sway becomes stronger when operators move toward the platform edges or step onto the extension deck, because the center of gravity shifts outward.
Normal sway is expected. Severe sway is usually caused by:
High percentage of rated capacity
Weight positioned far from the platform center
Overloading the extension deck
Tools and materials are often underestimated but can quickly consume available capacity.
Common weight sources include:
Power tools and toolboxes
Multiple battery packs
Installation materials
Panels, pipe sections, lighting fixtures
PPE, harness gear

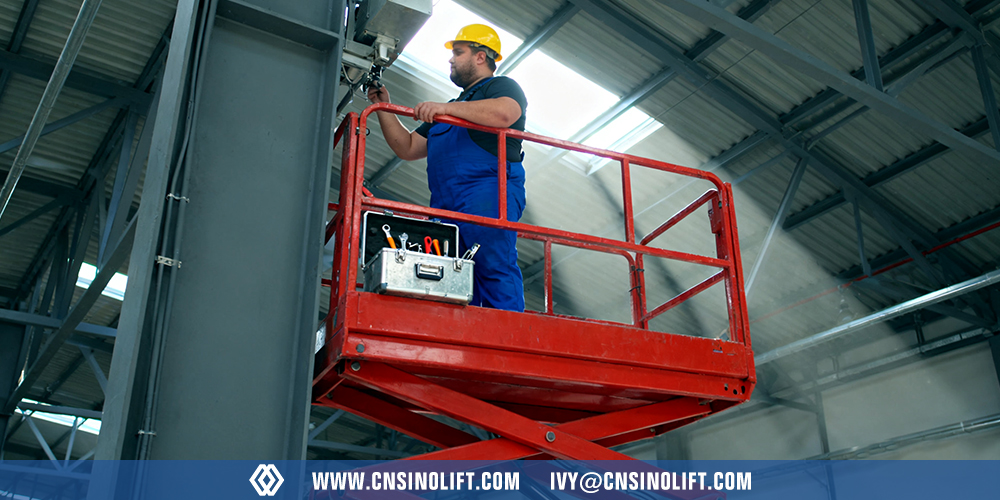

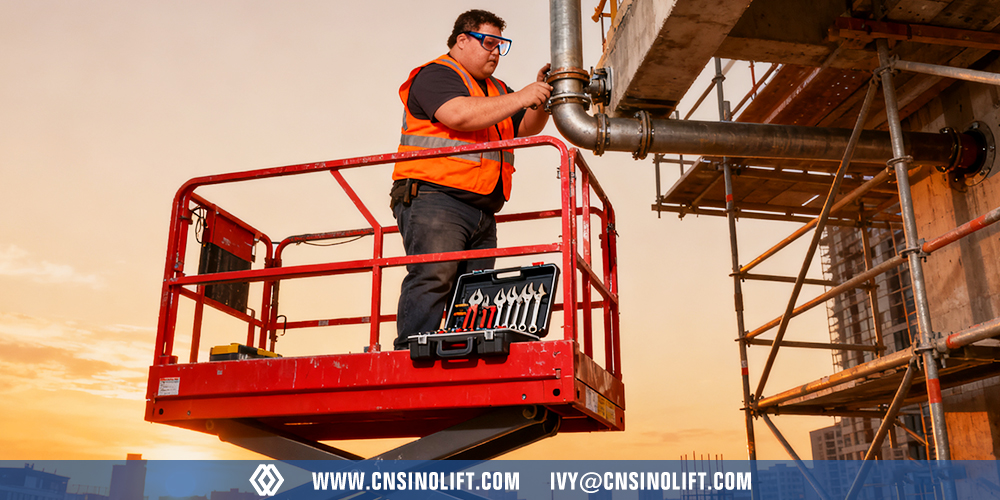

Even if operator weight is safe, a stack of tools placed along one side may shift the center of gravity and increase platform sway.
The extension deck has a separate rating:
Capacity: 119 kg
Reach: 0.9 m extension
Because the deck extends outward, any weight placed on it produces a stronger moment arm. This makes sway feel more noticeable, even when the lift is within safe limits.
One average operator plus a tool bag may already reach the 119 kg limit. Heavy tools or multiple operators should not stand on the extension deck at the same time.
Below are the rated capacities and working heights of the GTJZ electric scissor lifts:
| Model | Load Capacity | Working Height |
| GTJZ06 | 500 kg (1102 lbs) | 8 m (26 ft) |
| GTJZ08 | 450 kg (992 lbs) | 10 m (32 ft) |
| GTJZ10 | 320 kg (705 lbs) | 12 m (39 ft) |
| GTJZ12 | 320 kg (705 lbs) | 14 m (45 ft) |
| GTJZ14 | 227 kg (500 lbs) | 16 m (52 ft) |
| GTJZ16 | 227 kg (500 lbs) | 18 m (59 ft) |
Note:
For 14 m and 16 m models, optional outriggers can be installed to increase stability and reduce platform sway during elevated work.
3 operators × 70 kg + 30 kg tools → 240 kg (safe; light sway normal)
4 operators × 70 kg + tools → 310 kg (near limit; sway more noticeable)
2 operators × 85 kg + 20 kg tools → 190 kg (safe)
3 operators × 80 kg → 240 kg (overload; significant sway likely)
These examples demonstrate how lighter operators may allow 3–4 workers on some platforms, while heavier operators may limit capacity to 1–2 workers, especially when tools are included.
(The following section is now shorter and more direct.)
Operator weights
Tools and toolboxes
Materials
Safety equipment
Whether the extension deck will be used
Maintain a 20–30% safety margin below the lift’s capacity for best stability and comfort.
Indoor or outdoor use
Floor strength and leveling
Wind exposure
Working height (higher = sway feels stronger)
For tall models like 14 m and 16 m, using optional outriggers increases stability significantly.
Choosing a model with the right features improves handling:
Platform extension
Reinforced guardrails
Smooth electric drive control
Anti-slip platform surface
These features help reduce the feeling of sway, even though they don’t increase capacity.
Keep heavy items near the platform center
Distribute tools evenly; avoid stacking on one side
Move slowly when elevated
Limit weight on the extension deck
Lower the lift and recheck load if sway becomes unusually strong
Never exceed the platform’s rated capacity or the 119 kg extension deck limit
Understanding how operator body weight, tools, and extension deck use contribute to total platform load is essential for safe operation of any scissor lift or electric lift platform. Light sway is normal. Strong or increasing sway usually means it’s time to adjust load distribution or reduce the number of operators.
With the right model, proper load assessment, and optional outriggers on the 14 m and 16 m models, operators can achieve stable, safe, and efficient work at height.
