I. Core Conclusion
In foreign trade business, the most frequently asked core questions from overseas customers are: "Can scissor lifts pass through standard doorways?", "What is the width of a scissor lift?", and "Can scissor lifts navigate warehouse corridors?".
Based on the full range of self-developed and self-produced aerial work platforms, a clear answer is provided here: Most of the company's narrow-body electric scissor lifts and aluminum alloy lift series can smoothly pass through standard doorways in Europe and America without modification; wide-body models are adapted to large industrial doorways.
The key to safe equipment passage lies in the precise matching between the core dimensions of the machine in the stowed state and the clear dimensions of building doorways, which is also directly affected by machine type, on-site working conditions, and standardized operating procedures.
II. Core Matching Rules for Doorway Passage
1. Standard Doorway Dimensions for Major Global Markets
| Region |
Standard |
Clear Single Door Dimensions (W × H) |
Minimum Clear Passage Width |
Main Application Scenarios |
| USA / North America |
IBC Building Code |
32 in × 80 in (813×2032mm) |
32 in (813mm) |
Residential, commercial buildings, offices, small factories |
| Europe / EU |
EN81-70 Standard |
31.5 in × 82.7 in (800×2100mm) |
31.5 in (800mm) |
Public buildings, commercial facilities, industrial plants, warehousing & logistics |
| Australia / Oceania |
Australian Building Code |
33.5 in × 80 in (850×2032mm) |
32 in (813mm) |
Shopping centers, industrial warehouses, medical facilities, venues |
2. 4 Core Verification Parameters for Passage
The key to safe doorway passage is the accurate verification of the following four parameters:
| Core Parameter |
Definition |
Mandatory Passage Requirement |
| Maximum stowed width |
Overall transverse width including tires, guardrail posts and all protrusions when fully retracted |
Must be less than clear doorway width; ≥50mm safety clearance on each side, total ≥100mm recommended |
| Maximum stowed height |
Overall vertical height including top protrusions with platform fully lowered and guardrails fully folded |
Must be less than clear doorway height; ≥50mm top safety clearance recommended |
| Overall stowed length |
Total front-to-rear length when retracted |
Must be less than straight channel length in front of and behind doorway for sufficient straight travel and turning |
| Minimum turning radius |
Minimum space required for equipment steering |
Determines ability to turn after entering doorways, adapted to narrow corridors and corners |
Industry general safety margin principle: Clear doorway width ≥ equipment width + 100mm, clear doorway height ≥ equipment height + 50mm to prevent scraping and tilting risks caused by uneven ground.
III. Doorway Passability of Scissor Lifts by Working Height
This chapter analyzes passability by working height and narrow/wide body types to provide technical reference for selection.

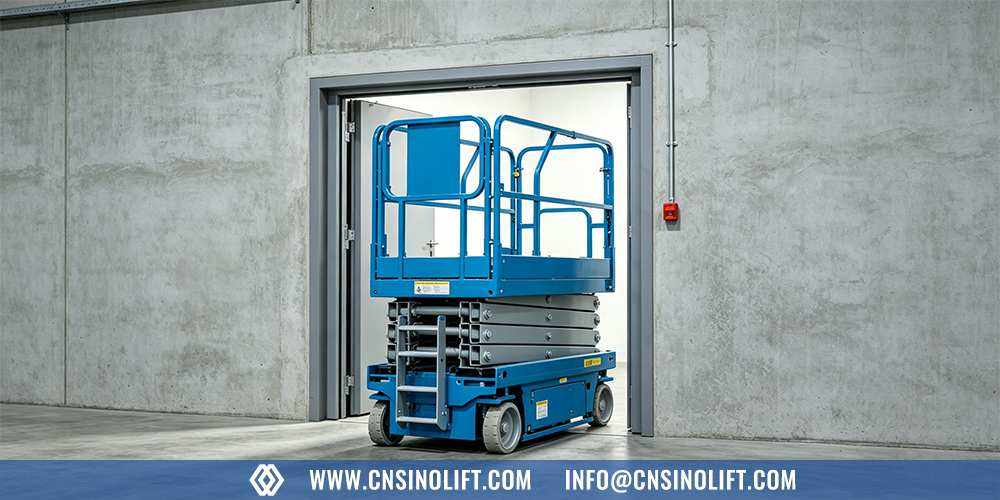

1. Mini Self-Propelled Scissor Lifts (3–4.5m Working Height)
Product positioning: Best-selling narrow-body models designed for indoor narrow spaces and standard single-door passage, featuring ultra-narrow design and lightweight construction, easily passing all standard European and American single doors and even entering standard passenger and freight elevators directly.
Core Advantages
- Stowed width only 760–870mm, perfectly adapted to European and American standard single doors
- Folded guardrail height 1400–1590mm, far below standard doorway clear height of 2032mm
- Light weight, extremely small turning radius (1400–1600mm), strong narrow corridor passability
- Equipped with non-marking polyurethane tires, zero wear on sensitive floors such as marble and wood flooring
Application scenarios: Indoor aerial work including office building renovation, supermarket maintenance, hotel and venue maintenance, old building renovation, factory indoor inspection.
| Working Height |
Platform Size |
Load Capacity |
Stowed Dimensions (L×W×H) |
Folded Height |
Model Type |
Standard Doorway Passability |
| 3m |
1290×700mm |
240kg |
1425×760×1900mm |
1400mm |
Narrow-body |
✅ Passes all global standard single doors easily, adapted to ultra-low non-standard doorways |
| 4m |
1290×700mm |
240kg |
1425×760×2005mm |
1505mm |
Narrow-body |
✅ Passes European, American and Australian standard single doors directly without modification, fits standard passenger elevators |
| 4.5m |
1390×870mm |
230kg |
1390×870×2090mm |
1590mm |
Narrow-body |
✅ Passes Australian standard single doors smoothly; on-site verification required for 800mm clear width European/American doorways |
2. Self-Propelled Scissor Lifts (5.8–7.8m Working Height)
Product positioning: All-scenario mainstream models, divided into narrow-body (indoor standard door passage) and wide-body (large industrial passages), balancing working height, load capacity and passability.
Narrow-body Core Advantages
- All models equipped with tool-free quick-release folding guardrails, folded in 1 minute to greatly reduce overall passage height
- Stowed width 800–850mm, passes European, American and Australian standard single doors directly without modification
- Four-wheel independent steering for smaller turning radius, easier alignment and passage
Wide-body Core Advantages: Large platform, high load capacity, adapted to large passages in industrial plants and warehouses.
| Working Height |
Platform Size |
Load Capacity |
Stowed Dimensions (L×W×H) |
Folded Height |
Model Type |
Standard Doorway Passability |
| 5.8m |
1.67×0.74m |
230kg |
1.85×0.80×2.22m |
1.72m |
Narrow-body |
✅ Passes European, American and Australian standard single doors directly without modification |
| 5.8m |
2.30×0.81m |
380kg |
2.48×0.81×2.18m |
1.68m |
Narrow-body |
✅ Passes European, American and Australian standard single doors directly without modification |
| 7.8m |
2.29×0.81m |
230kg |
2.48×0.85×2.30m |
1.80m |
Narrow-body |
✅ Passes European, American and Australian standard single doors smoothly with sufficient safety clearance |
| 5.8m |
2.30×1.13m |
550kg |
2.48×1.19×2.19m |
1.69m |
Wide-body |
⚠️ Requires double doors / industrial sliding doors with clear width ≥1300mm |
| 7.8m |
2.29×1.13m |
450kg |
2.48×1.19×2.32m |
1.82m |
Wide-body |
⚠️ Requires double doors / industrial sliding doors with clear width ≥1300mm |

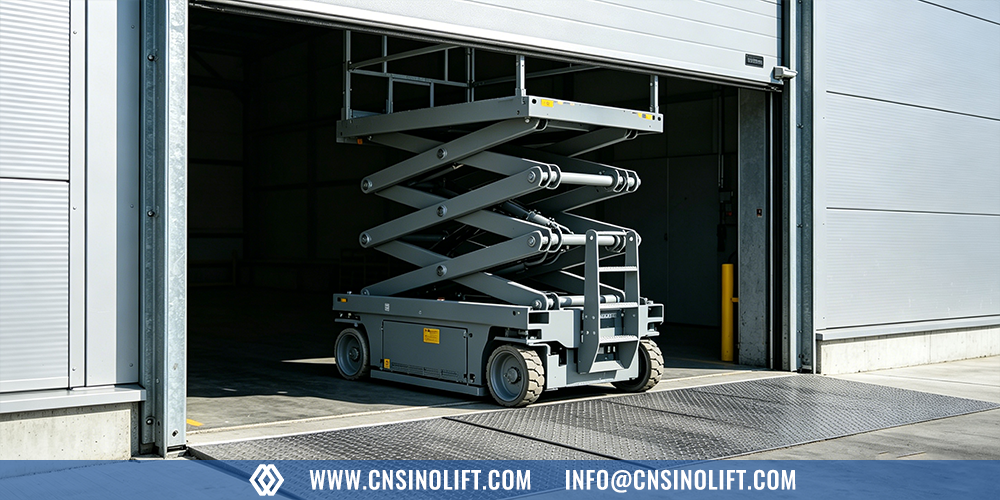

3. Self-Propelled Scissor Lifts (9.8–13.8m Working Height)
Product positioning: Mainstream models for medium-to-high altitude work, featuring large platforms, high working height and strong load capacity, all wide-body, mainly adapted to industrial double doors and warehouse sliding doors.
| Working Height |
Platform Size |
Load Capacity |
Stowed Dimensions (L×W×H) |
Folded Height |
Model Type |
Doorway Passage Requirement |
| 9.8m |
2.30×1.13m |
320kg |
2.495×1.181×2.45m |
1.95m |
Wide-body |
⚠️ Requires industrial double doors / sliding doors with clear width ≥1300mm |
| 11.8m |
2.29×1.13m |
320kg |
2.495×1.187×2.585m |
2.085m |
Wide-body |
⚠️ Requires industrial double doors with clear width ≥1300mm and clear height ≥2150mm |
| 13.8m |
2.67×1.13m |
227kg |
2.84×1.40×2.595m |
2.095m |
Wide-body |
⚠️ Requires industrial sliding doors / large double doors with clear width ≥1500mm |
Selection note: Wide-body models of 9.8m and above are generally too large in size and weight to enter standard elevators. For indoor work, narrow-body models of the same height or outdoor access via freight passages may be used.
4. Aluminum Alloy Lift Series (Indoor Passage Supplement)
As a core supplementary category for indoor aerial work besides scissor lifts, aluminum alloy lifts are made of high-strength aviation aluminum alloy, featuring lightweight and ultra-narrow design with excellent narrow-space passability, easily passing ultra-narrow non-standard doorways, household doors and narrow corridors.
Core Advantages
- Narrower body, lighter weight, minimal floor wear
- Manual push operation, adapted to precise work scenarios| Strong stability of single-mast and double-mast structures, reliable platform load capacity
Application scenarios: Old building renovation, museum / exhibition hall maintenance, villa indoor work, high-end shopping mall fine decoration, office building precise maintenance.
Aluminum Alloy Lift Specifications
| Working Height |
Platform Size |
Load Capacity |
Stowed Dimensions (L×W×H) |
Weight |
Standard Doorway Passability |
| 4m (Single-mast) |
640×490mm |
100kg |
1450×600×1630mm |
280kg |
✅ Passes household ultra-narrow doors and all standard single doors |
| 6–10m (Single-mast) |
650×650mm |
130–150kg |
1400–1450×780×1630–1970mm |
280–420kg |
✅ Passes European, American and Australian standard single doors easily |
| 6–10m (Double-mast) |
1200–1500×630mm |
250–300kg |
1550–1840×850×2000mm |
510–690kg |
✅ Passes European, American and Australian standard single doors smoothly |
Self-Propelled Aluminum Alloy Lifts: Added self-propelled drive on the basis of aluminum alloy lifts, no manual pushing required, capable of independent travel, steering and doorway passage, adapted to long-distance indoor multi-point work in large commercial venues and factories.
| Working Height |
Platform Size |
Load Capacity |
Stowed Dimensions (L×W×H) |
Weight |
Standard Doorway Passability |
| 6–8m (Single-mast) |
650×650mm |
150kg |
1450–1650×768×2110mm |
830–880kg |
✅ Passes European, American and Australian standard single doors directly without modification |
| 6–8m (Double-mast) |
1380×700mm |
300kg |
1800–2135×925–970×1956–2185mm |
1100–1136kg |
✅ Passes Australian standard single doors smoothly; double doors recommended for European/American standard doorways |
IV. Standardized Operating Procedures for Doorway Passage
1. 3 Mandatory Pre-Passage Verifications
①
Accurate Dimension Verification
Visual estimation is strictly prohibited; actual measurement of clear doorway width and height (minimum clear dimensions including door frames, door stops, hinges, floor springs and all protrusions) is required.Verify official specifications of corresponding models, focusing on maximum overall width and height with guardrails fully folded.Strictly follow safety margin principle: clear doorway width ≥ equipment width + 100mm; clear doorway height ≥ folded equipment height + 50mm.Forced passage with critical dimensions is prohibited.
②
On-Site Environment Verification
Thoroughly clear debris and obstacles within 3 meters inside and outside the doorway.Ensure no oil, water, raised steps or slopes on the ground; level the ground in advance if unevenness exceeds 5mm.Ensure door can be fully fixed open without swinging shut to cause collision.
③
Equipment Status Verification
Confirm scissor arms fully retracted and platform lowered to lowest position per manual.Ensure foldable guardrails fully folded and locked; detachable guardrails properly removed and stored as specified.Check hydraulic system, drive motor, tires and battery for normal operation, no oil leakage or loose screws.
2. Standardized Safe Passage Procedure
①
Two-Person Cooperation System
One certified operator to drive, one dedicated supervisor to monitor and direct at the doorway side at all times.Monitor left/right and top/bottom clearances between equipment and door frame; stop immediately in case of abnormality.Single-person unsupervised passage is strictly prohibited.
②
Precise Passage Operation
Align equipment with doorway center, keep body parallel to door frame.Travel at low constant speed; no sudden stop, turn, acceleration or reverse within doorway range.Maintain stable travel; stop immediately and inspect if scraping or jamming is detected, no forced passage.Turn only after equipment completely exits the doorway.
3. Compliant Optimization Solutions for Critical Dimensions
| Solution |
Measures |
Application Scenarios |
| Guardrail Optimization |
Quick-release guardrail models preferred, reducing height by an additional 10–20cm beyond folding without tools |
Low door frames, height-critical scenarios |
| Path Optimization |
Adjust route to use freight elevators, loading docks, rear industrial doors with larger dimensions |
Old buildings with generally small doorways |
| Model Replacement |
Switch to mini narrow-body scissors or single-mast aluminum alloy lifts for ultra-narrow/low non-standard doorways |
Ultra-narrow non-standard doorways, ultra-low frames |
V. Safety Red Lines (Prohibited Items)
❌ Passage with scissor arms raised or platform not fully lowered: causes structural damage, tipping or falling accidents.
❌ Forced passage by overturning, lifting or tilting the machine: designed for four-wheel horizontal travel, tilting greatly increases tipping risk.
❌ Forced passage through critical-size doorways without safety clearance: even 10mm shortage may cause scraping or jamming due to uneven ground or body sway.
❌ Passage with personnel or materials on the platform: extra load changes stability and increases height, causing collision.
❌ Forced passage on uneven, under-capacity, oily or wet ground: equipment weight ranges from hundreds to thousands of kilograms, causing slippage or tilting.
❌ Lifting platform with guardrails removed and not reinstalled: guardrails are essential safety components; no lifting work allowed without guardrails.
VI. Selection Guide
1. Core Selection Formula for Doorway Passage
✅ Maximum stowed equipment width ≤ minimum clear doorway width − 100mm (50mm safety clearance per side)
✅ Maximum folded guardrail height ≤ minimum clear doorway height − 50mm (top safety clearance)
✅ Overall stowed equipment length ≤ straight channel length in front of and behind doorway for sufficient travel space
✅ Overall equipment weight ≤ rated load capacity of passage floor and elevator car
2. Model Recommendations by Doorway Type
| Doorway Type |
Recommended Models |
Core Adaptation Advantages |
| European/American standard single door (clear W≥800mm, H≥2000mm) |
3m/4m mini narrow scissors, 5.8m/7.8m narrow scissors, 4–10m aluminum alloy lifts |
Narrow body ≤850mm wide, folded height ≤1800mm, direct passage |
| Australian standard single door (clear W≥850mm, H≥2000mm) |
Full mini narrow scissors, 5.8m/7.8m narrow scissors, full self-propelled aluminum alloy lifts |
Body width ≤870mm, perfectly matches Australian standards |
| Industrial double doors / warehouse sliding doors (clear W≥1200mm, H≥2200mm) |
5.8–13.8m wide scissors, 12–18m double-mast aluminum alloy lifts |
Large platform, high load, adapted to industrial passages |
| Old building non-standard narrow doors / household doors (clear W≥600mm, H≥1800mm) |
3m/4m mini narrow scissors, 4–8m single-mast aluminum alloy lifts |
Ultra-narrow body, adapted to tiny doorways |
Conclusion
In summary, whether a scissor lift can pass through a standard doorway depends on the precise matching between the stowed dimensions of narrow/wide-body models and clear doorway dimensions. Safe and compliant passage is achieved by selecting appropriate models based on working height and on-site conditions, and strictly following standardized operating procedures.
For indoor precise and narrow-space work, aluminum alloy lifts and self-propelled aluminum alloy lifts serve as excellent supplements to scissor lifts. The combination covers most indoor aerial work passage and construction needs.
VII. FAQ
Q1: Can a scissor lift pass through a 32-inch standard European/American single door?
A: Yes. 3m/4m mini narrow scissors have a stowed width of only 760mm, and 5.8m/7.8m narrow scissors up to 850mm, both smaller than the 813mm clear width of standard European/American single doors. With foldable guardrails, overall height is far below doorway clear height, enabling safe passage without modification or disassembly.
Q2: What is the minimum height requirement for a scissor lift to pass through a doorway? Do folded heights vary by lifting height?
A: Core requirement: maximum overall height with guardrails fully folded must be less than clear doorway height, with at least 50mm safety clearance recommended. Folded heights differ by lifting height and body type:
| Model Series |
Body Type |
Folded Guardrail Height Range |
Recommended Doorway Clear Height |
| Mini self-propelled scissors (3–4.5m) |
Narrow-body |
1400–1590mm |
≥1650mm |
| Self-propelled scissors (5.8–7.8m) |
Narrow-body |
1680–1800mm |
≥1850mm |
| Self-propelled scissors (5.8–7.8m) |
Wide-body |
1690–1820mm |
≥1900mm |
| Self-propelled scissors (9.8–13.8m) |
Wide-body |
1950–2095mm |
≥2150mm |
Q3: Can diesel / rough-terrain scissor lifts pass through indoor doorways?
A: Mostly no. Diesel/rough-terrain models are wide-body designed for outdoor all-terrain use, with width over 1500mm and height over 2200mm, unable to pass standard indoor doors. Diesel exhaust is also unsuitable for enclosed indoor spaces. Electric narrow-body scissors and aluminum alloy lifts are preferred indoors.
Q4: Must guardrails be removed to pass through doorways? How to operate after removal?
A: Not necessarily. No removal is needed if height is sufficient with guardrails folded. Quick-release models are recommended only for height-critical doorways.Follow manual instructions for removal. Guardrails must be reinstalled and locked immediately after passage before manned lifting; work without guardrails is strictly prohibited.
Q5: Can scissor lifts fit into standard elevators? How do different models adapt?
A: Full series of mini narrow scissors and aluminum alloy lifts fit standard freight and large passenger elevators, provided dimensions and weight are within elevator limits.Wide-body scissors (5.8m+) are generally too large for standard elevators; narrow elevator-specific models or freight passages are recommended.
Q6: How to choose between scissor lifts and aluminum alloy lifts for indoor doorway passage?
A: Choose based on scenario, load demand and working height:
| Selection Priority |
Recommended Model |
Scenario Features |
| Heavy load, long travel, frequent standard doorway passage |
Narrow-body self-propelled scissors |
Load 230–550kg, large platform, high efficiency |
| Ultra-narrow doorways, sensitive floors, light-load frequent maintenance |
Aluminum alloy lifts |
Ultra-narrow & lightweight, minimal floor wear, manually pushed |
| Long-distance self-travel, continuous multi-point work |
Self-propelled aluminum alloy lifts |
No manual pushing, high automation, large venues |
>Can You Use an Electric Scissor Lift on Tile Without Causing Damage?
>Can You Operate a Scissor Lift by Yourself?
>What is the lifespan of a scissor lift?
>How many hours is a scissor lift good for?
Contact our team today for a customized quote, factory price, and fast global delivery.
We help you lift smarter — safely, efficiently, and affordably.
Email: info@cnsinolift.com
About HENAN SINO LIFT CO.,LTD:
HENAN SINO LIFT is committed to providing customers with high-quality and high-performance industrial equipment. Over the years, we have adhered to technological innovation and product quality, earning the trust and support of our customers.
We manufacture Scissor Lift, Mast Lift，Boom Lift，Cargo Lift，Loading Ramp，Wheelchair Lift，Warehouse Handling Euipment， If you need these products, please let me specify a suitable solution for you.
We can provide detailed information on the various models and specifications and help you select the platform that best suits your specific needs.
Email: info@cnsinolift.com
Website: www.cnsinolift.com
